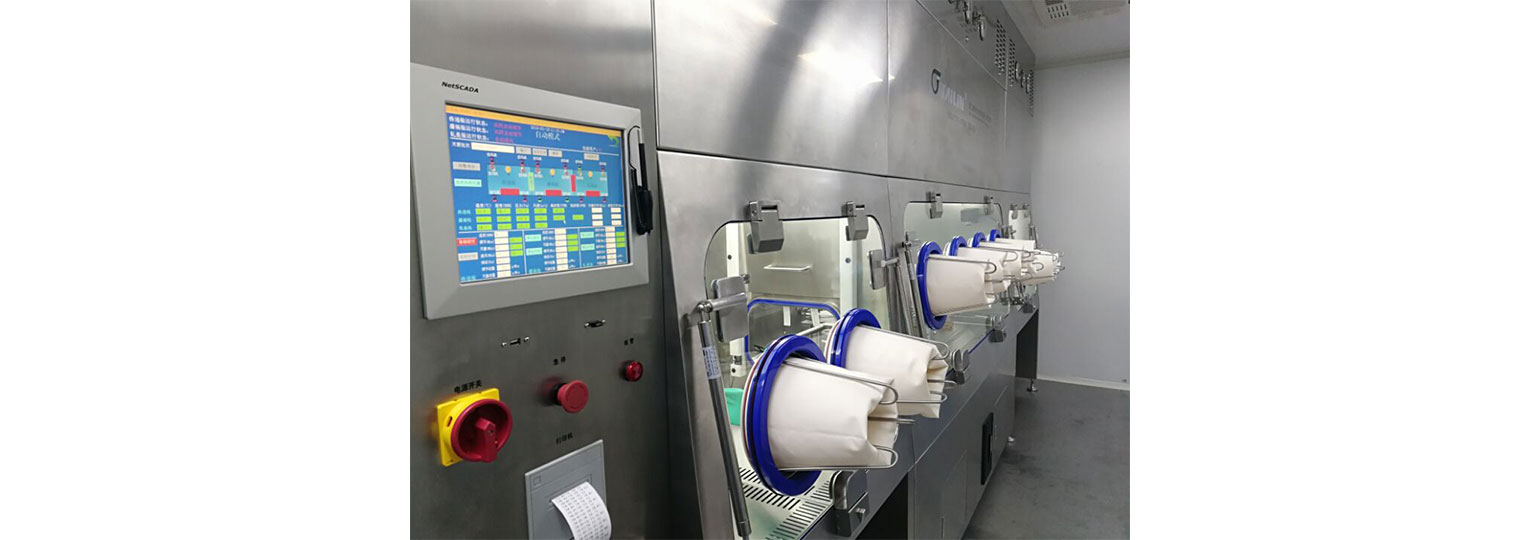

Designed for small batch filling.
Reduce human intervention to guarantee the asepsis and containment.
Customized and modular designed.
Class A, ISO5, Aseptic environment.
Integrated VHPS® decontamination system.
Real time monitoring the velocity, differential pressure, humidity, temperature.
Temperature is adjustable to minimize the influence to products.
Critical process parameters can be stored and printed.
Power Supply: AC 380V/50Hz
Siemens PLC control with HMI
Leakage rate is less than 0.5% /vol/hour at 2 times working pressure
LED lamp, more than 300 Lux.
Rapid Transfer Ports (RTP) technology for safe transfer.
Particle counter
Air sampler
H2O2 high & low concentration sensors
H2O2 portable sensor for operator safety
WiFi controlled glove integrity tester (GIT-WLAN)
Wooden Mock-Up
Complete validation protocols to comply with FDA, EMA, GMP, 21CFR Part 11.
FAT, SAT, Training.
Technical specifications are subject to change without notice. Copyright reserved by Tailin.
