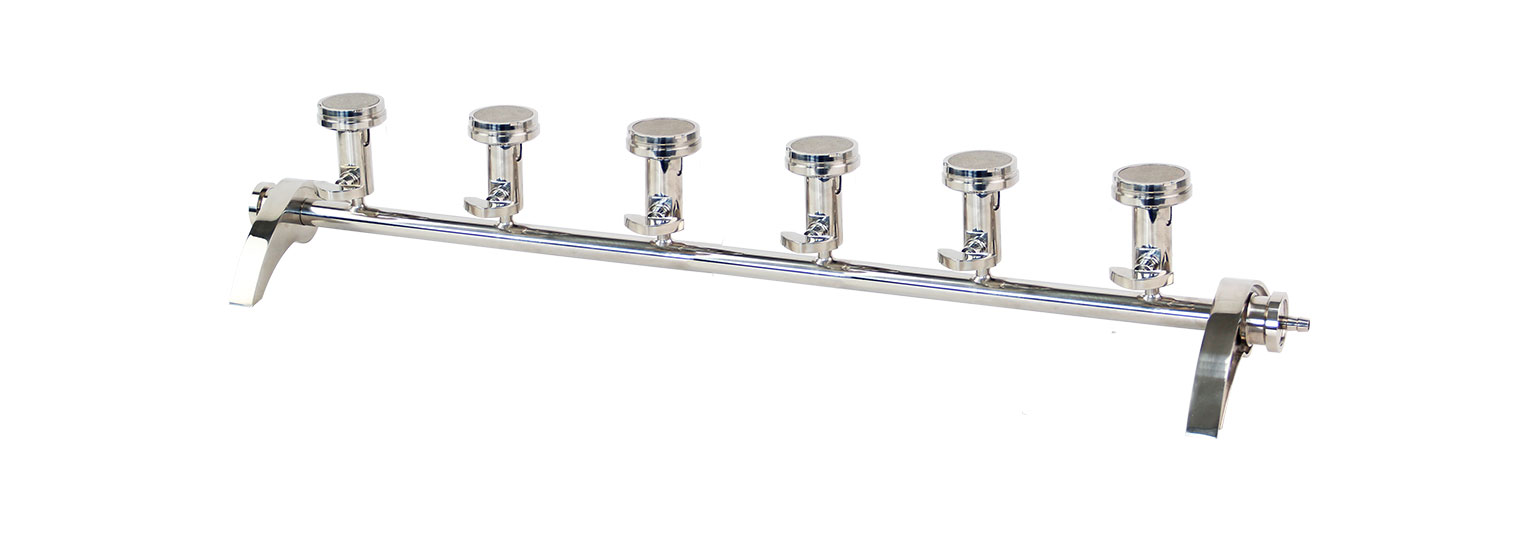

HTY-30X is new designed microbial limit test manifold. It is simple structure, easy to diassemble.

A complete bioburden filtration system consists of manifold, pump, funnels and membrane filters.

Features

Unique design for easy cleaning and decontamination;

Can be installed 1 /3/ 6 filtration heads;

Different type pump heads can be selected;

Pump heads can be removed quickly for heat sterilization;

Quick-fit connectors for the pump tubing.



Technical Parameters

Fit for these funnels: F47,F47-R250, F60-R250, F47B.

Net Weight:

       HTY-301A/B/C: 1.8kg/2.0kg/1.8kg

       HTY-303A/B/C: 3.6kg/4.0kg/3.6kg

       HTY-306A/B/C: 5.4kg/6.2kg/5.4kg

Materials: SUS316L

Membrane filter diameter: Φ47mm, Φ60mm

Dimensions:

      HTY-301A/B/C: 170mmx180mmx115mm (L x W x H);

      HTY-303A/B/C: 410mmx180mmx115mm (L x W x H);

      HTY-306A/B/C: 770mmx180mmx115mm (L x W x H);

Filtration Heads type

      A: PF47A

      B: PF60A

      C: PB47A

Applications

Microbial limit test  laboratories.

Used together with the  laboratory pump, filtration funnels and membrane filters to establish one filtration system.






Technical specifications are subject to change without notice. Copyright reserved by Tailin.
